♦ On Inverter
• High overload ability up to 300% rated power(20 sec.).
• Low quiescent current, power saver mode
♦ On Battery Charger
• 3- step intelligent battery charging
• Uses PFC(power factor correction) for charger
♦ On Transfer
• 10ms typical transfer time
• 15s delay before transfer when AC resumes
♦ Option
• Battery/AC priority switch Available for off grid solar/wind system
• Auto Generator Starter
• Remote Control
• Battery Temperature Sensor

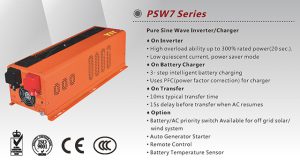

Feature of PSW7 Series Inverter&Charger
♦ High overload ability of our PSW7 charger is up to 300% rated power(20 sec)
♦ PSW7 pure sine wave inverter adopts low quiescent current, and power saver mode to reduce power consumption to 10W(3s sensing cycle)/3W(30s sensing cycle) *. It can extract max.
power from various batteries with different protections, and low voltage trip can be selected (9.5V/10V or 10V/10.5V).
♦ Uses PFC(power factor correction) for charger, which has less power consumption than conventional units.
♦ It has 15s delay before transfer when AC resumes, and overload protection when our PSW7 pure sine wave inverter equips with generator.
♦ 10ms typical transfer time between battery and AC, which guarantees power continuity of PSW7 charger. Uses selectable input AC voltage (184-253V or 154-253V) for different kinds of loads.
♦ Our PSW7 charger allows start up and through power with depleted batteries. Its powerful charge rate up to 90Amp.
♦ It can offer 3-step intelligent battery charging, and equipped with 8 preset battery type selector for totally flat batteries.
♦ LCD status display, battery/AC priority switch, USB communication port are available for our PSW7 pure sine wave inverter, it also has 17 alarms/warnings for easier operation and trouble-shooting,and ability to switch the unit on/off. In addition, select/deselect power saver mode can be used too.
