Mini Data Center Solution

mini data center 01-400x400
« 1 of 2 »
    • Integrated monitoring system
    • Install Data Center where you want and need it
    • Rapid deployment in 4-6 weeks from plan to start-up
    • Low total cost of ownership
    • Up to 50% less space required
    • No raised floor required
    • Full turnkey Data Center including cooling, structured cabling, monitoring,
    • Power management and protection
    • Scalable from 1 rack to hundreds of racks
    • Standalone Data Center
    • Individual rack cooling up to 30 kW
    • High level security within rack fire protection and monitoring systems
    • Advanced power management with IP PDU and UPS systems
    • Internal redundancy achieved by using 3x fans.
    • External redundancy achieved by using N+1 side coolers
    • Structured cabling solutions with overhead cable channels
    • Access Control options with either keypad, RFID card reader or fingerprint reader to open the cabinet doors
    Air cooled(DX) SideCooler Water Based Side Cooler
    Cooling Capacity 28 kW 30 kW
    Rack Height 42U/47U 42U/47U

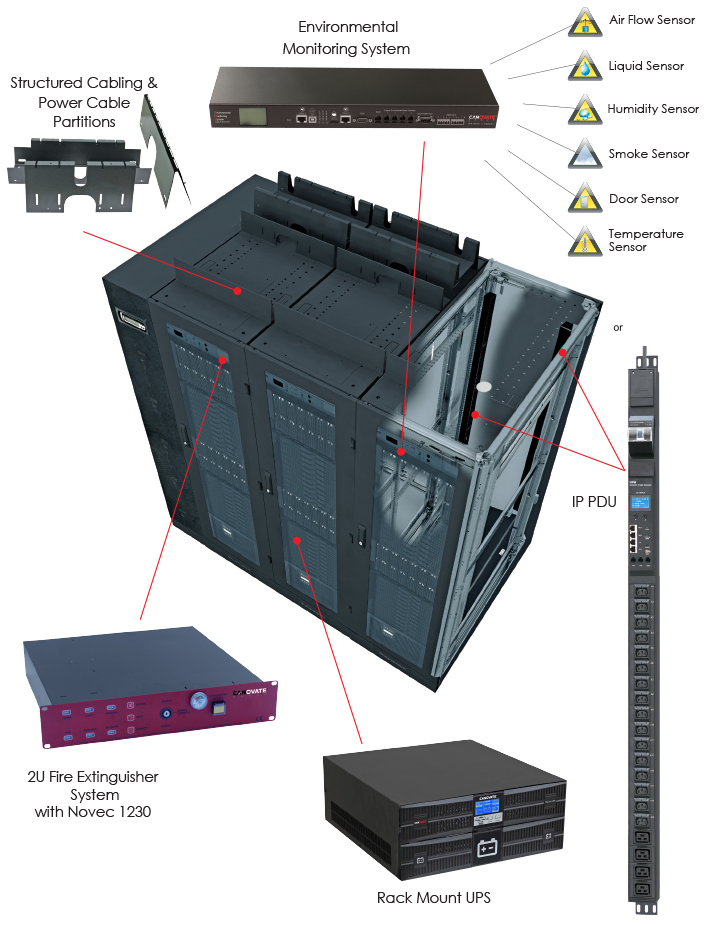

    Components of the Mini Data Center

    Mini Data Center Configuration

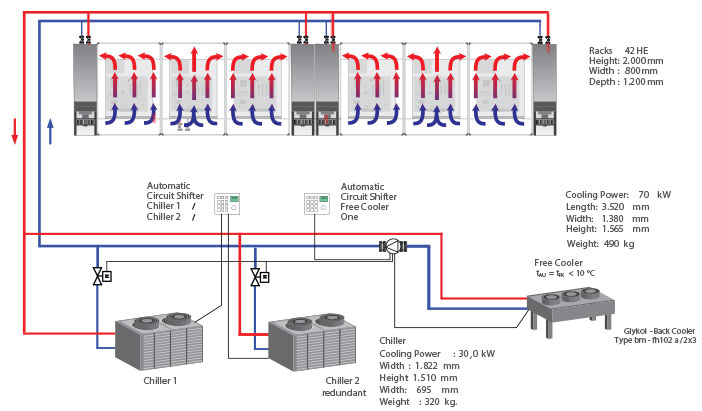

    A Reference Side Cooler Application Layout





  • High density servers exceeding 10 kW
    Mobile Containers/Shelters
    Branch Offices
    Disaster recovery operations
    Small clinics/hospitals
    Warehouses
    Remote installations
    Temporary installation
    Mobile applications
    Air cooled(DX) SideCooler Water Based Side Cooler
    Cooling Capacity 28 kW 30 kW
    Rack Height 42U/47U 42U/47U
