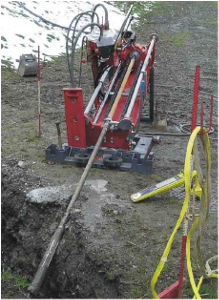

In its long version the MINI-JET MJLV is one meter loger than the normal MINI-JET. With 1.5m long drill rods you can drill up to 120m and backream up to 300 mm, also in hard ground condition. The MINI-JET is driven by a Kubota 24kW engine and offers 1’600Nm of torque and 60kN(6 tons) of thrust and pullback force.
The MINI-JET LV can be adapted with rock drilling tools for hard ground conditions.
[restabs alignment=”osc-tabs-left” responsive=”false”]
[restab title=”Mixing and Pumping” active=”active”]
- with separate 1’100 ltr-tank (290 gal) for Bentonite or Ejactomer
- with support plate for 2 bags of Bentonite each 25 kg (50 lbs)
- the Bentonite can be easily filled into the funnel mixing pump with 800 ltr/min (210 gpm)
- injector (venturi jet)
- 1’100 ltr (290 gal) of drilling fluid are mixed with Bentonite within 4 minutes high pressure drilling fluid pump of FMC
- maximum drilling fluid volume: 38 ltr/min (10 gpm)
- maximum drilling fluid pressure: 55 bar (800 psi)
[/restab]
[restab title=”Rubber crawler(Optional)”]

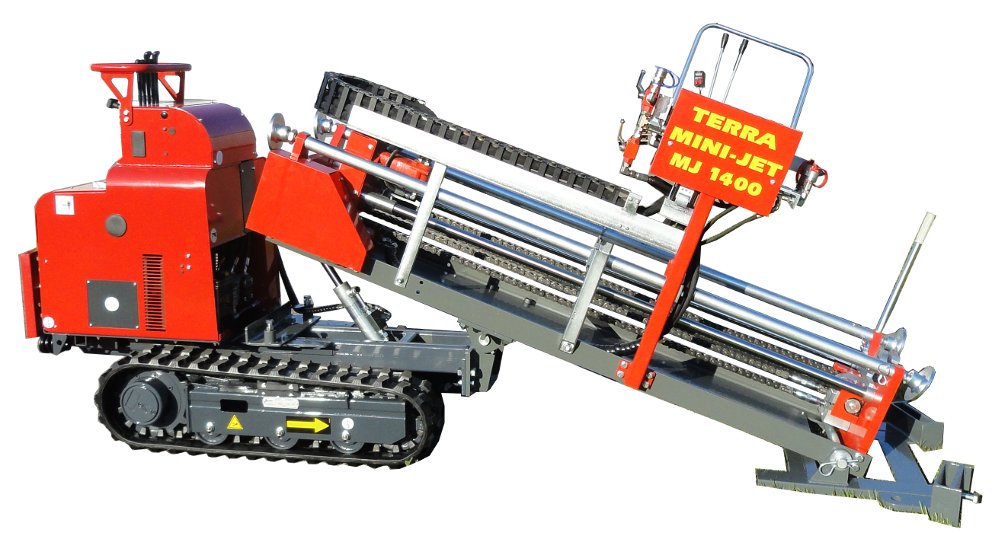

With the optional rubber crawler your MINI-JETLV can be used like a small HDD drill rig. The rubber crawler has its own petrol engine HONDA GX 390 (10 kW, 13 PS). With the standing plate form for the driver the HDD drill rig is stabilised. With the integrated cylinder the entry angle can easily be adjusted.
- dimensions L x W x H (MJLV 1400 with rubber crawler): 3.60 x 0.86 x 1.75 m / 11.9 x 2.85 x 5.8 ft
- weight (MJLV 1400 with rubber crawler): 1’000 kg (2’200 lbs)
[/restab]
[restab title=”Power pack”]
- with 3 cylinder KUBOTA Diesel engine with 24 kW (33 HP)
- the Diesel engine operates at 2’500 r.p.m.
- with 2 independent hydraulic circuits
56 ltr/min @ 175 bar (15 gpm @ 2’500 psi) for the pit frame
28 ltr/min @ 125 bar (7.5 gpm @ 1’800 psi) for the mixing + pumping station - large oil cooler with 6.4 kW cooling power, allows even ropical and desert operation
- service friendly
- environmentally friendly
- 12 Volt plug with 5 A (60 W)
[/restab]
[restab title=”Technical Data”]
| Technical Data | |||
|---|---|---|---|
| * Depending on ground conditions ** Depending on drill rod size |
|||
| pullback force |
6 to (60 kN)
|
13’200 lbs (6.6 US tons)
|
|
| thrust force |
6 to (60 kN)
|
13’200 lbs (6.6 US tons)
|
|
| driving power |
24 kW (33 PS)
|
24 kW (33 HP)
|
|
| torque, 1st speed |
1600 Nm
|
1200 ft.lbs
|
|
| torque, 2nd speed |
–
|
–
|
|
| drill rod rotation speed, 1st speed |
110 U/min
|
110 rpm
|
|
| drill rod rotation speed, 2nd speed |
–
|
–
|
|
| drilling fluid volume |
38 l/min
|
10 gpm
|
|
| maximum drilling fluid pressure |
55 bar
|
800 psi
|
|
| noise emission in 7 m distance |
–
|
–
|
|
| noise emission at operators ear |
–
|
–
|
|
| pilot bore diameter |
Ø 60 – 100 mm
|
Ø 2.4″ – 4″
|
|
| maximum backream diameter* |
Ø 300 mm
|
Ø 12″
|
|
| maximum drilling length * |
120 m
|
400 ft
|
|
| drill rods, length |
1.5 m
|
5 ft
|
|
| drill rods, diameter |
Ø 45 mm
|
Ø 1.77″
|
|
| minimum turning radius** |
25 m
|
80 ft
|
|

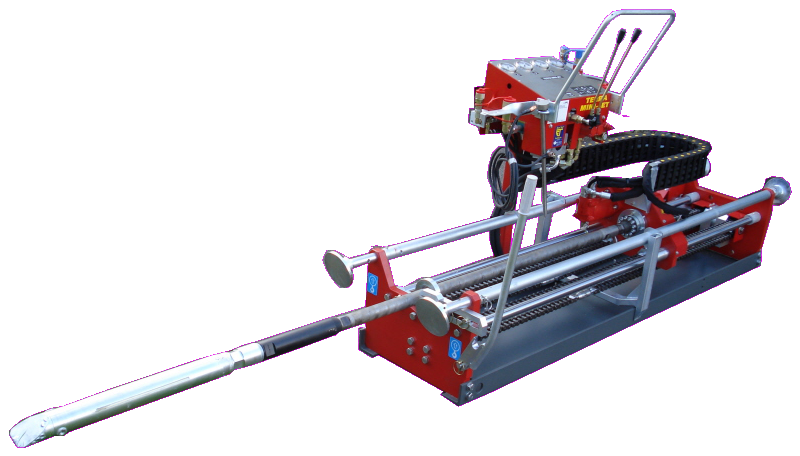

| Dimensions pit cradle LxWxH |
2.30 x 0.60 x 1.15 m
|
7.6 x 2.0 x 3.8 ft
|
|
| weight of the pit cradle |
ca. 430 kg
|
950 lbs
|
|
.[/restab][/restabs]
